We make really nice pergolas because we use excellent materials and genuinely care about our customers
satisfaction.
Main benefits of the Baldwin Fiberglass Attached Pergolas:
Constructed with fiberglass, stainless-steel, copper, and aluminum
Will last for decades. Annual cleaning recommended.
Fully customizable to any size rectangle or square
Designed for one day installation with typical contractor tools
Intersections notched for lateral rigidity, beauty and ease of assembly
No exposed fasteners - Very clean fit and finish

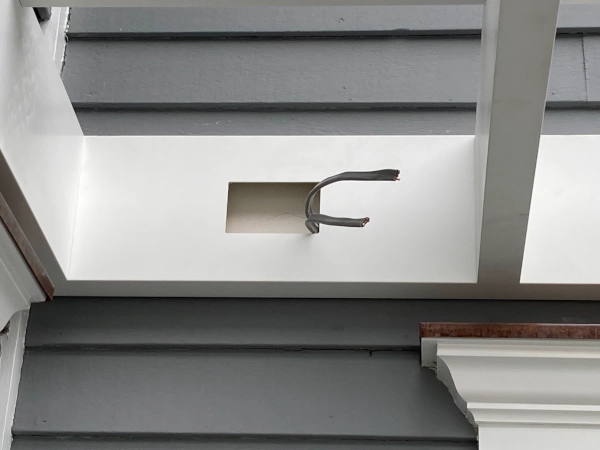

Hollow members can conceal wires for lights and speakers, even water lines

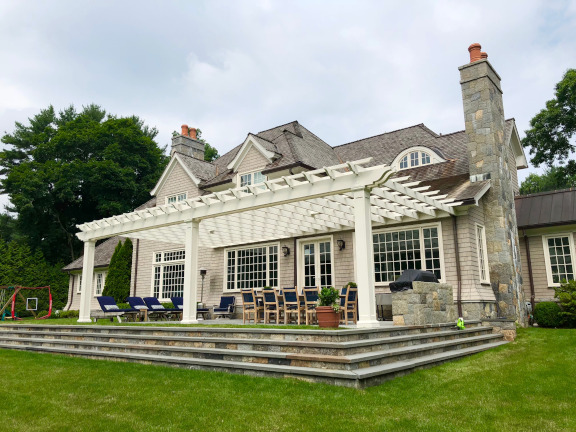

The pergolas shown in the following gallery can be ordered using our online pricing tool. They are unique
in many ways but not considered custom.

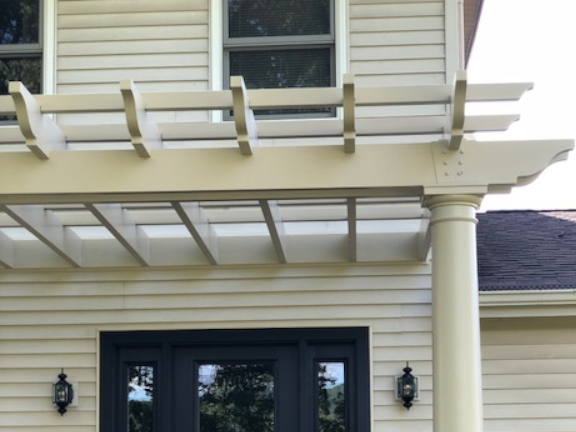

Gallery of Attached Fiberglass Pergolas
Site Layout and Dimensions
The homeowners relayed measurements to us via email and we used that information
to create the working plans. From there a footing layout was determined and footings were poured. Once
in place the footings serve to anchor the pergola's structural fiberglass columns providing rigid base
for the interlocking rafters and purlins.
Column Mounting Surfaces
Typically attached pergolas require a concrete footing or slab to support the columns. In some cases
they can be mounted directly to a deck.

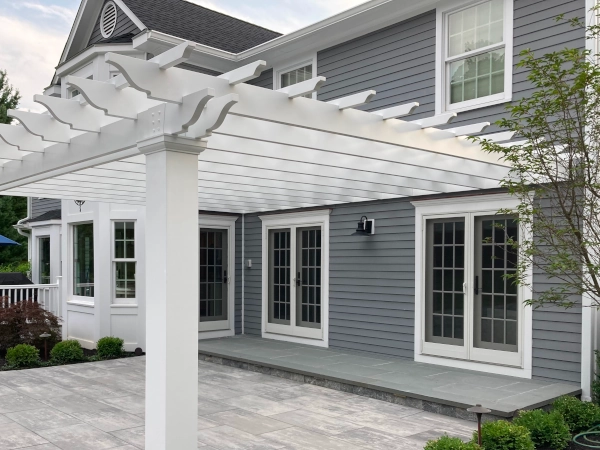

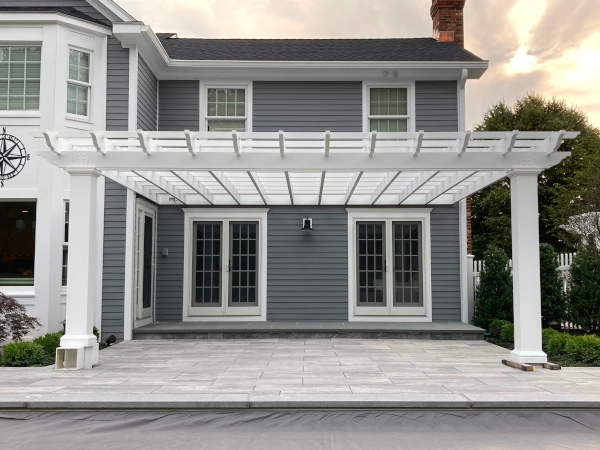

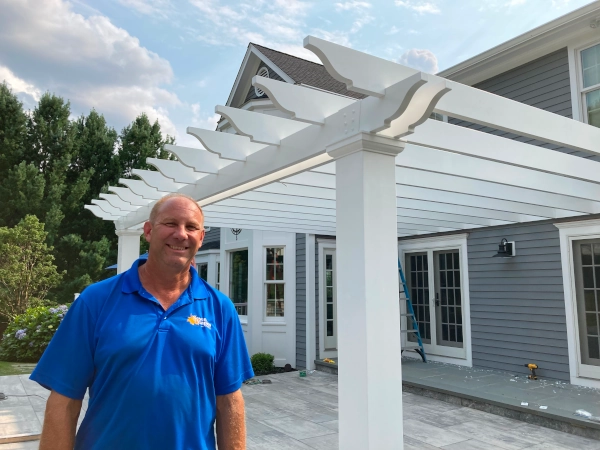

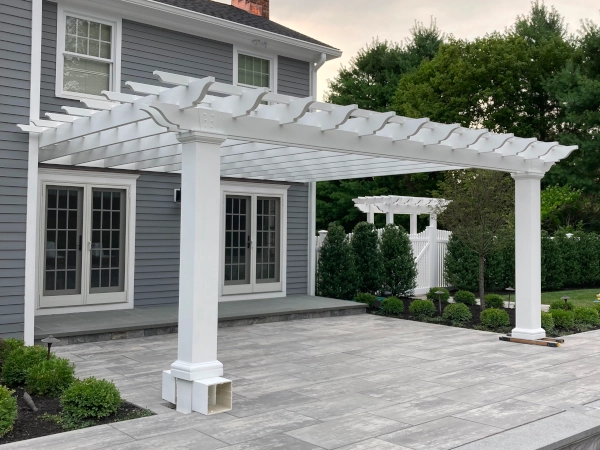

PPG Coatings
The white pergola works well with the existing trim and outdoor decor. We use
a hard semi-gloss PPG coating that repels dirt and soot. Our high quality PPG coatings are available
in custom colors!

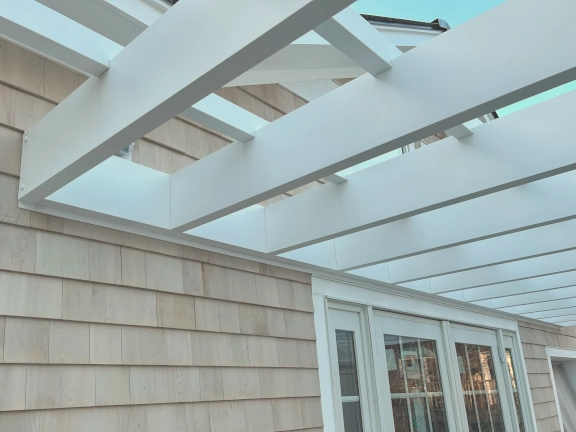

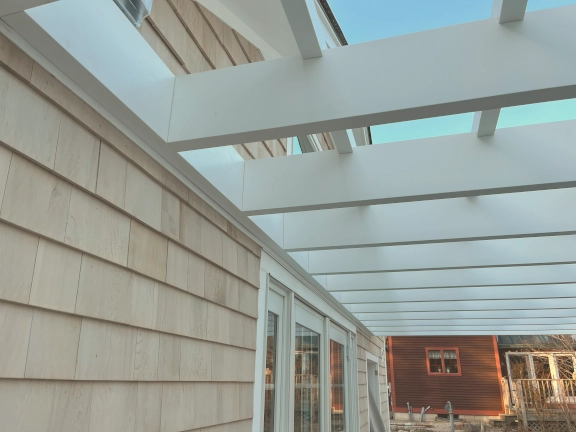

Custom Connection Methods

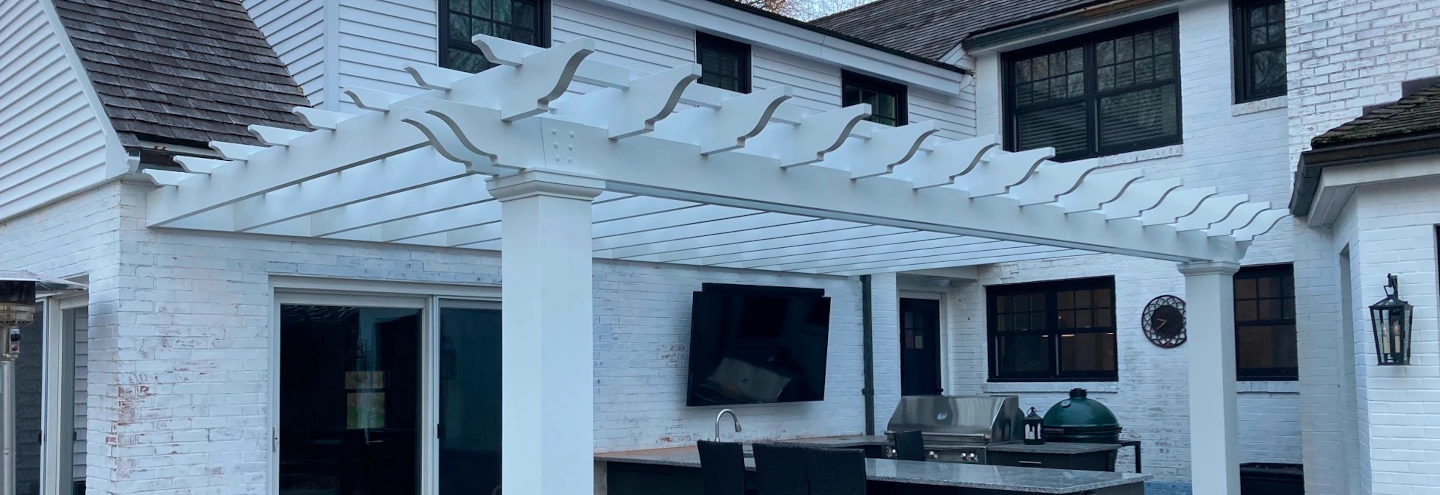

This attached pergola was the perfect addition to this client's home. It provides a semi-covered
area for entertaining guests while maintaining open space. This pergola utilizes a unique design to
attach to the home, the ledger board is not carried the full width of the pergola and doesn't obstruct
the masonry. Instead ledger blocks are fastened directly to the masonry wall providing a seamless
look.
Baldwin Fiberglass Pergolas
Custom Rafter Outsets
Our experienced design team can make any pergola look just right! In this case custom rafter offsets
were calculated to avoid carrying the ledger beyond the house in order to produce an integrated
aesthetic.

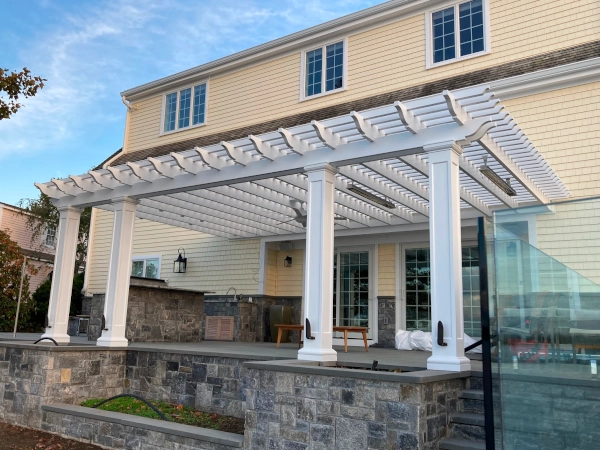

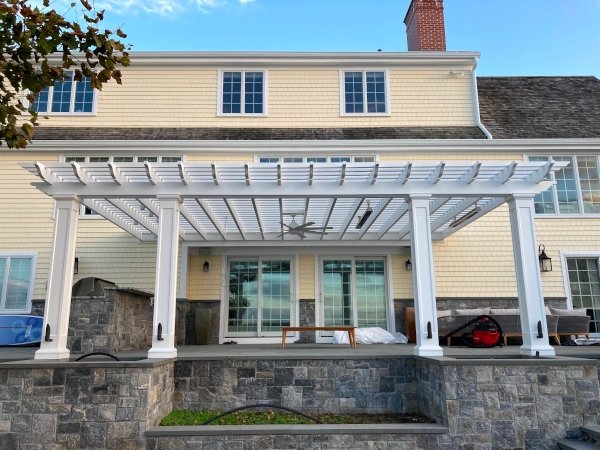

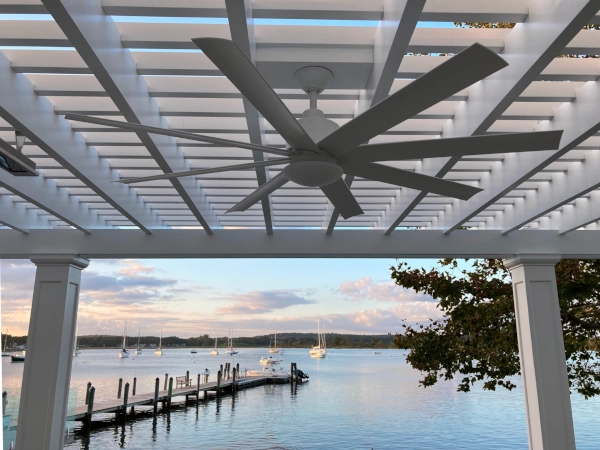

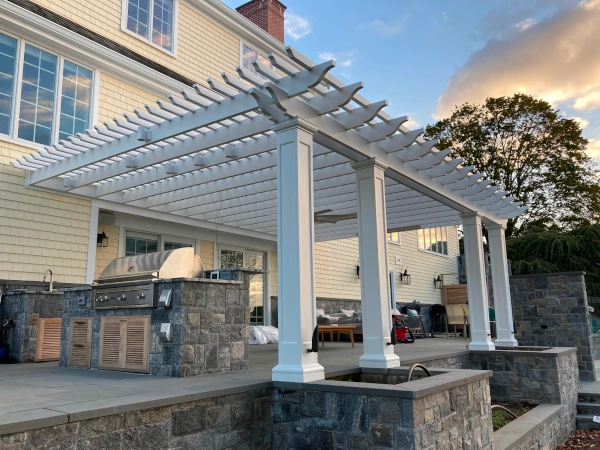

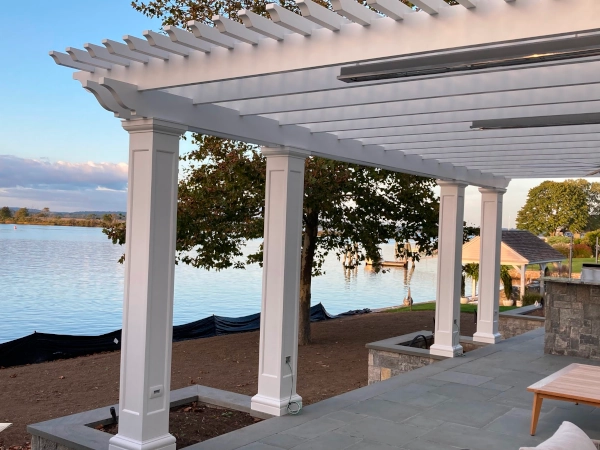

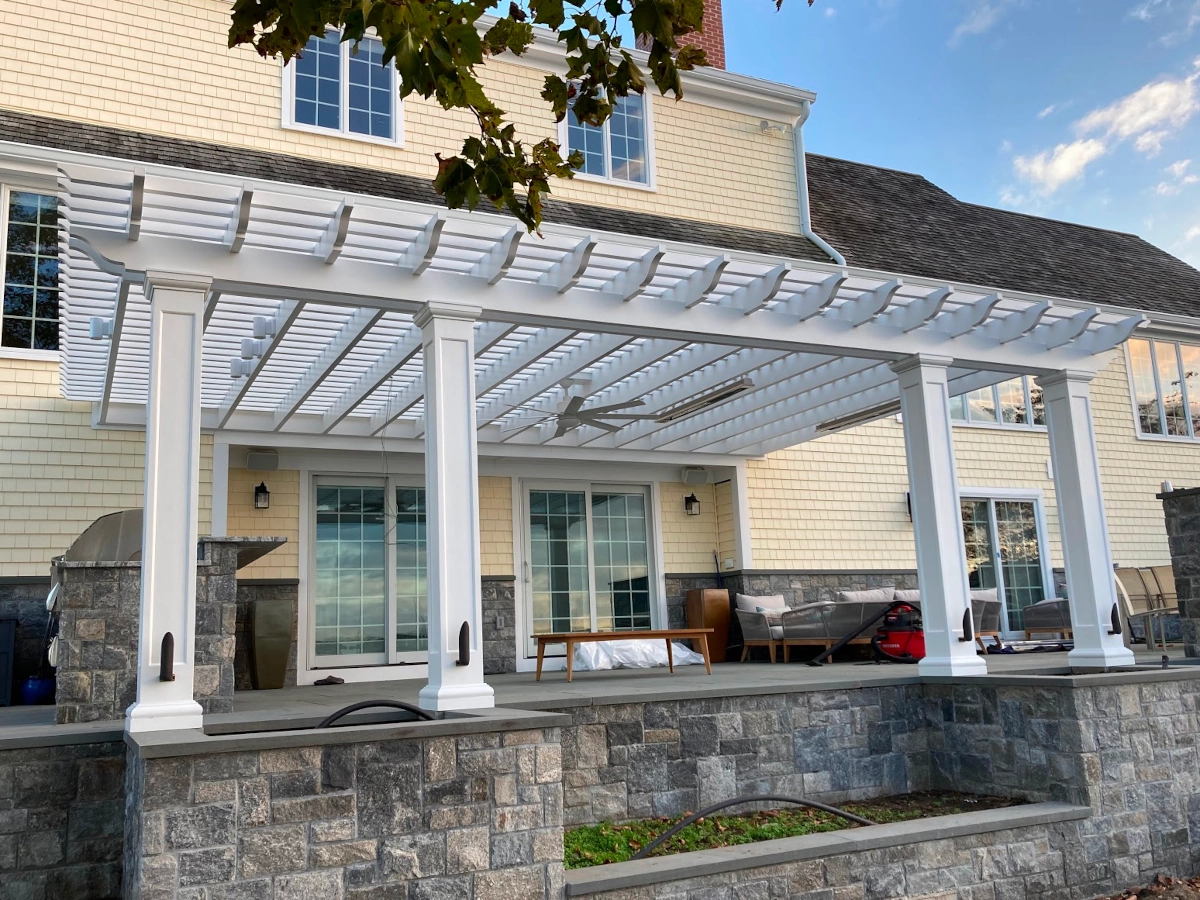

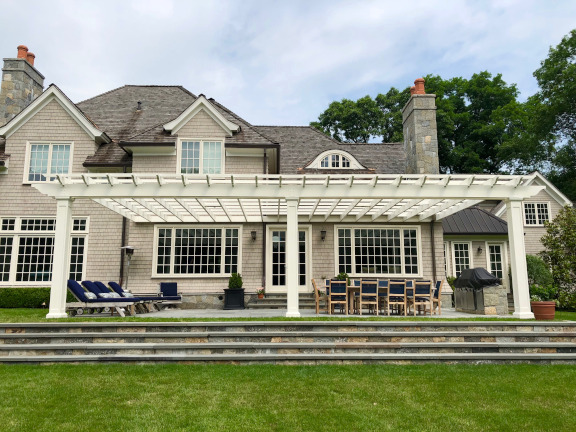

Outdoor living in Connecticut
Outdoor kitchen covered by Baldwin Pergolas
Outdoor kitchen covered by Baldwin Pergolas
Outdoor kitchen covered by Baldwin Pergolas
Outdoor kitchen covered by Baldwin Pergolas
Outdoor kitchen covered by Baldwin Pergolas
Outdoor kitchen covered by Baldwin Pergolas
Outdoor kitchen covered by Baldwin Pergolas
Being a sub-contractor
We supply contractors
On this project a contractor in Connecticut hired us to provide this pergola
We supply contractors
We did meet the homeowner, whom was wonderful, but all conversations and preparations were made with
the general contractor.
We supply contractors

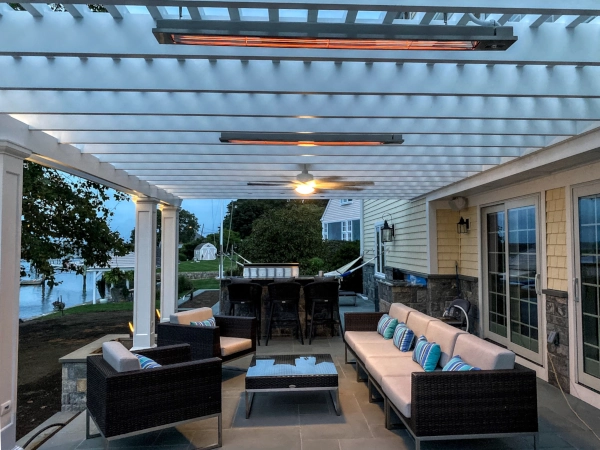

There was some electrical options on this project: A radiant heater and an outlet for an outdoor
television.
We supply contractors
On projects such as this, there is typically patio company, an electrician, and a landscaper or
designer.
We supply contractors
Since the pergola needs to be designed thoughtfully, is on the patio and includes wires, we need to
work with each
of the sub-contractors to plan every aspect of the project in detail.
When we work as a team, everyone wins, especially the homeowner.

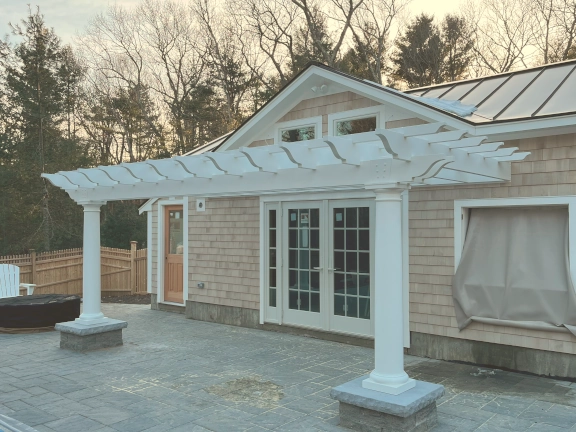

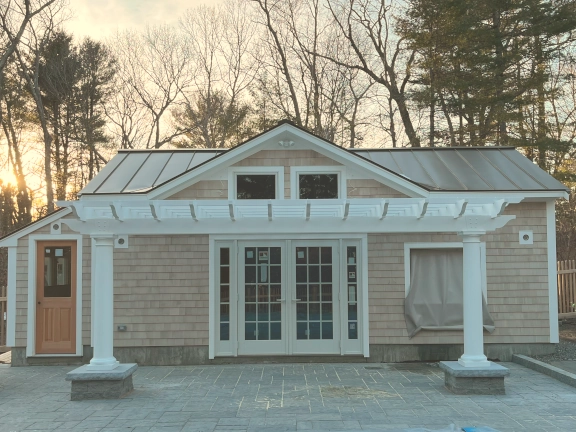

Pergola attached to poolhouse
Pergola attached to poolhouse
Pergola attached to poolhouse
Pergola attached to poolhouse
Pergola attached to poolhouse
Social Pergola
You design it. We built it. 30-40 days is all it takes.

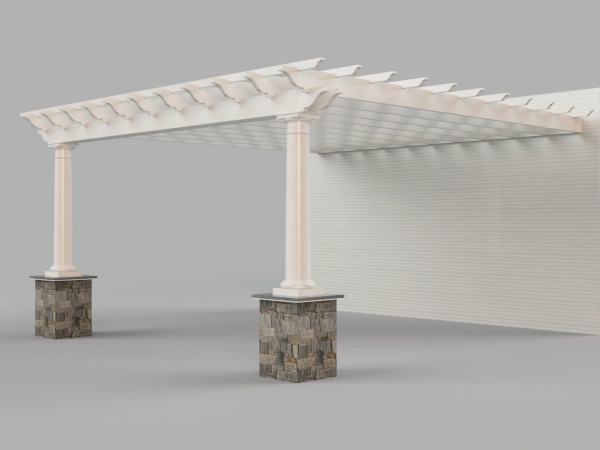

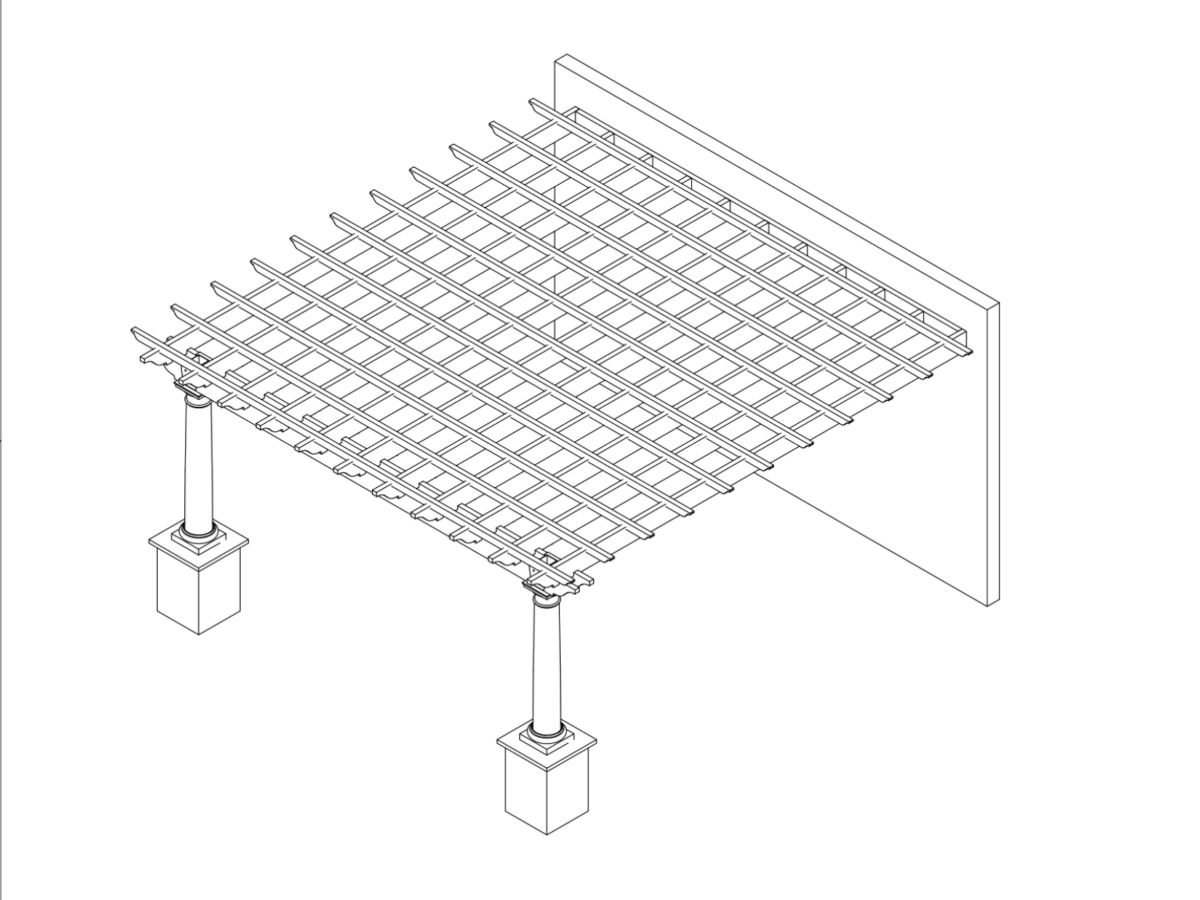

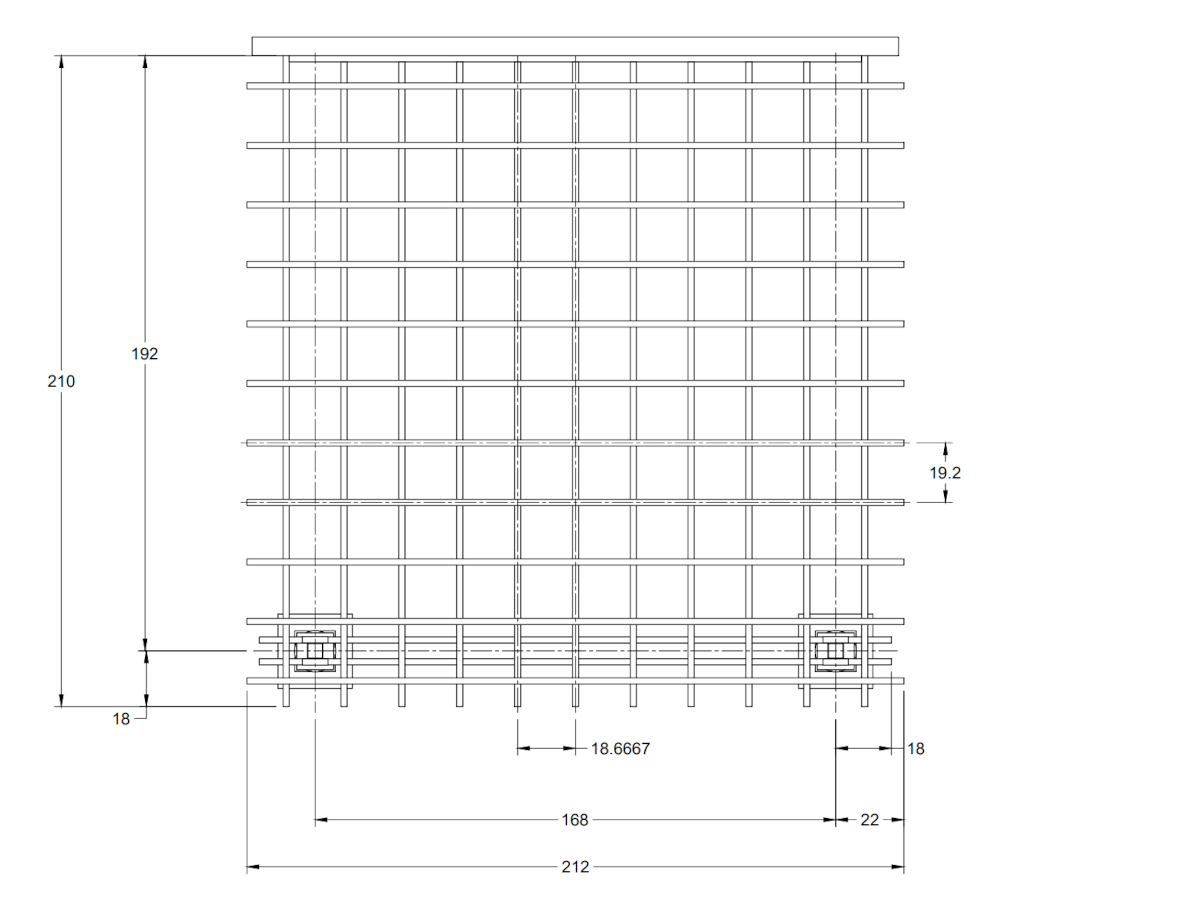

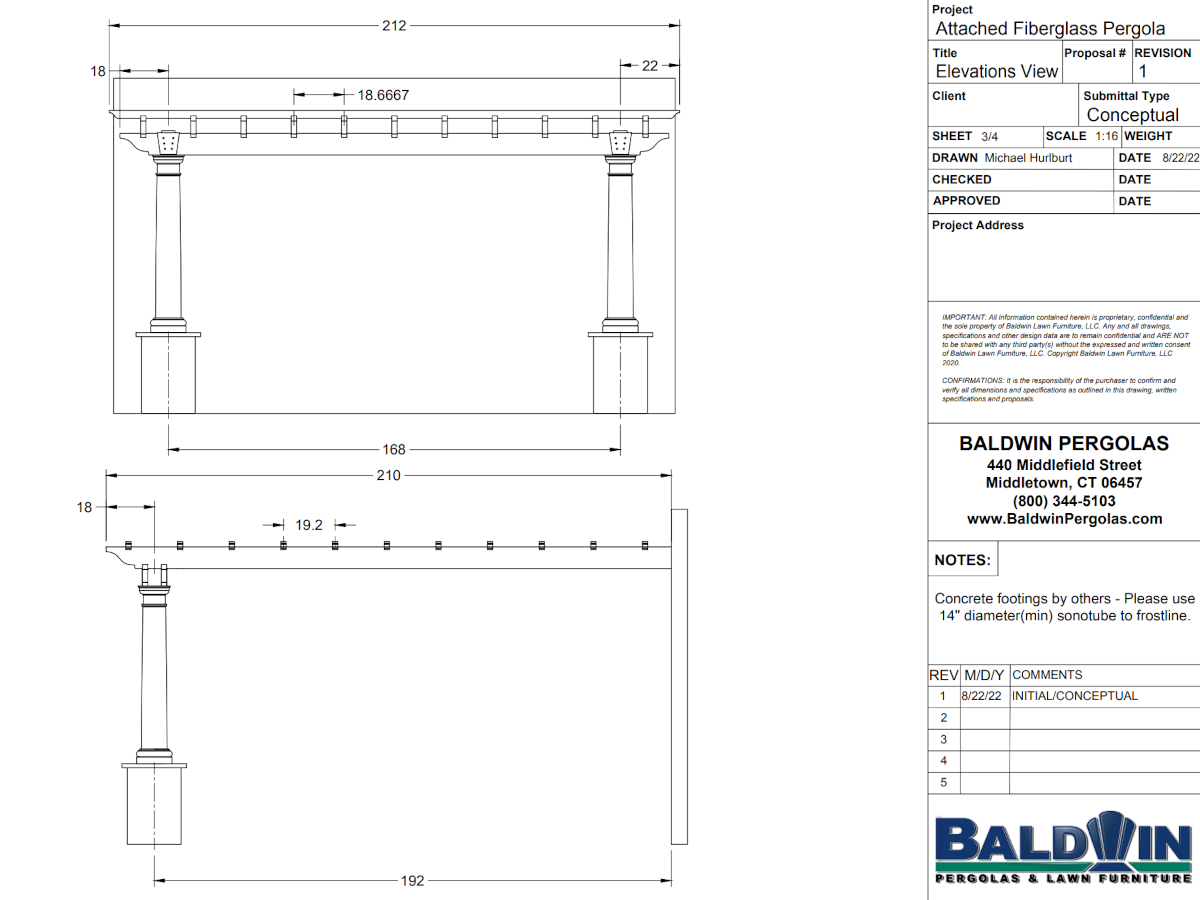

Pergola in CAD
Attached pergola shown in CAD during design phase
Attached pergola shown in CAD during design phase
Attached pergola shown in CAD during design phase
Attached pergola shown in CAD during design phase

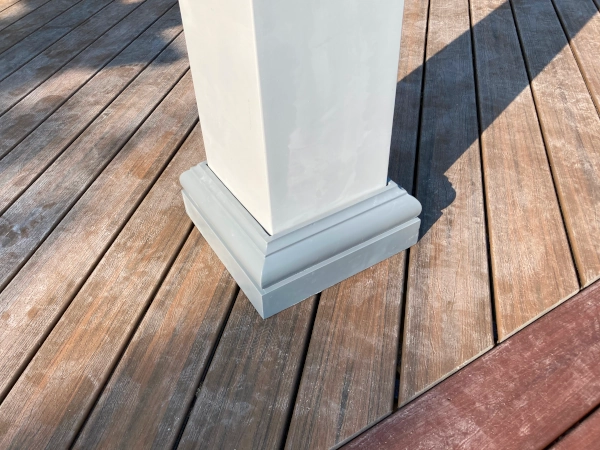

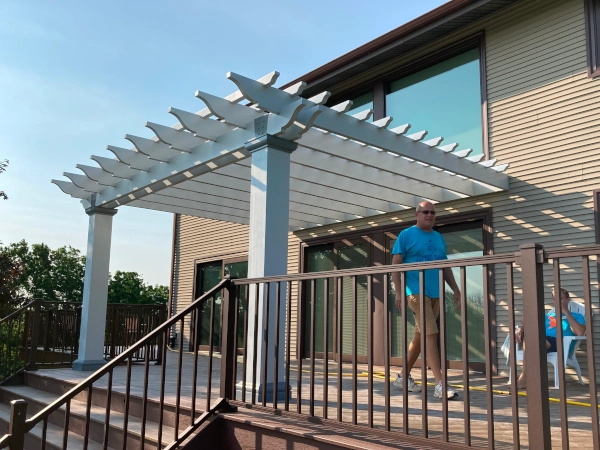

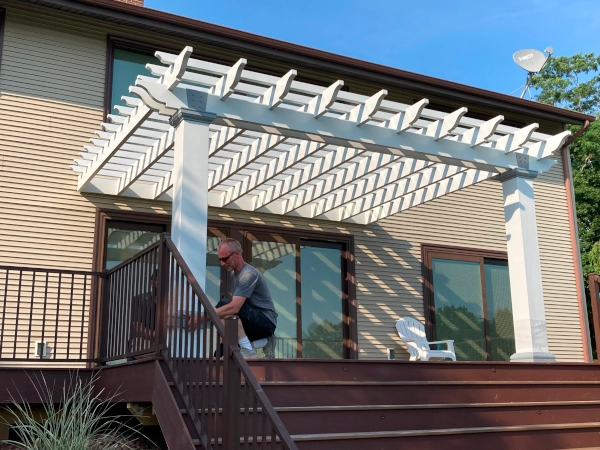

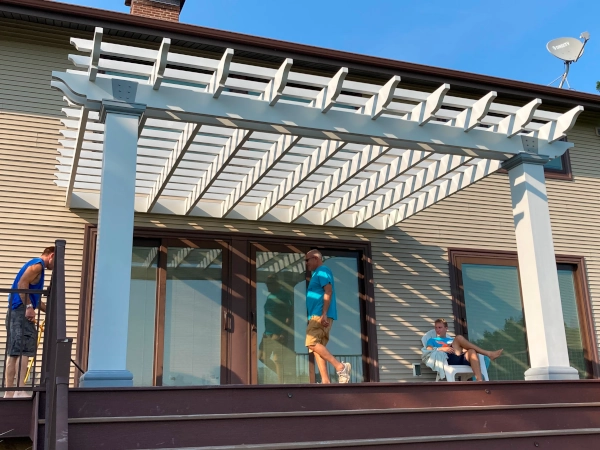

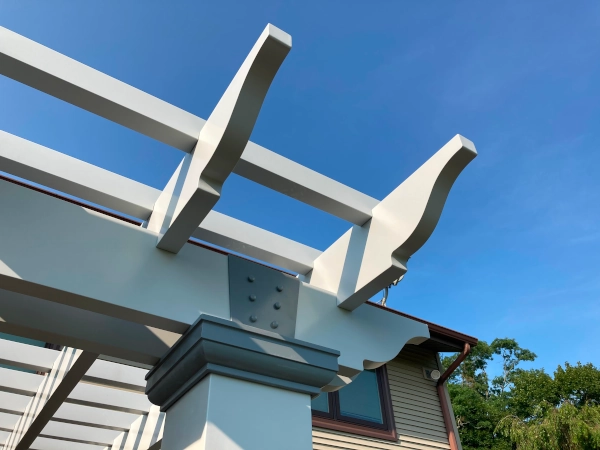

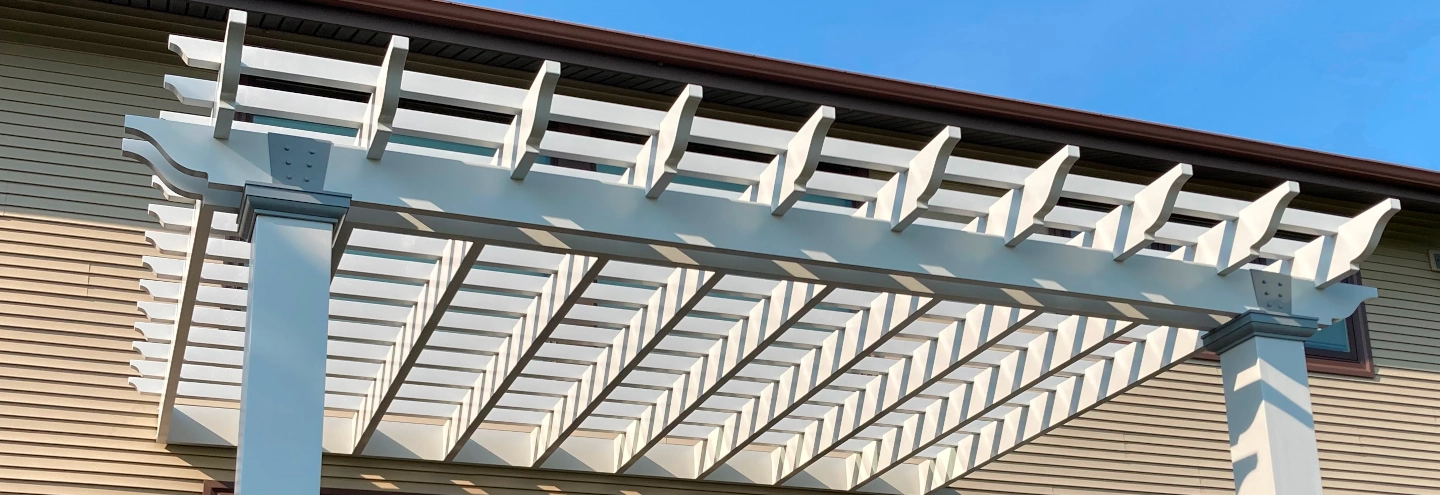

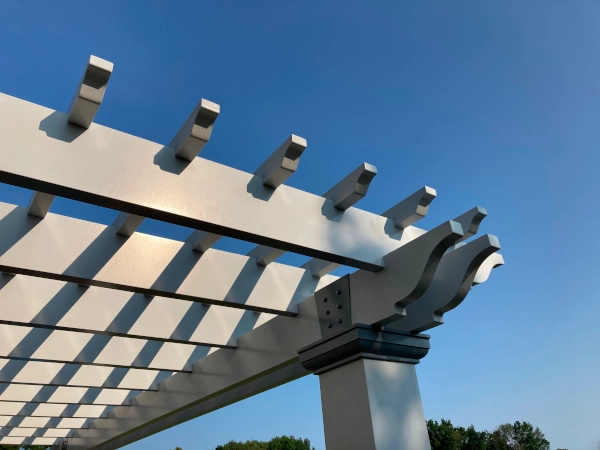

Residential Attached Pergola Mounted to Deck and House
Life is good pergola
Life is good pergola
Life is good pergola
Life is good pergola
Life is good pergola
Life is good pergola
The rigidity of the pergola is derived from the stability of the connection to the Earth. The importance of big, solid footings which are placed accurately, cannot be overstated.
The rigidity of the pergola is derived from the stability of the connection to the Earth.
Concrete footings: 14" Diameter minimum for 10" square and 12" round columns.
Our site plan will show a diagonal dimension. This helps you square the footings to each other.
Concrete pad: Should be poured 12" deep in the area where the columns will stand.
Stone wall: It's best to drill 18" deep into the well built, mortared stone wall.
Concrete pier: Wet set our 5/8" stainless steel rods into the footing then build the pier
Tolerance factor: Footings should be placed accurately with an overall error margin of less than an inch.
Conduit in footings: Bring a sweep into your footing with the center about three inches off center.
Deck mounted: Ask us for PDF drawings of best practice connection methods.
It is the customers responsibility to make sure that an adequate mounting surface is in place. The customer is responsible for
supplying relevant dimensions such as the depth and width of column centers and overall height requirements for the structure.
All dimensions, including overhangs and member spacing are completely customizable during the design process. At the time of installation, nothing can be changed.
Standing a column up onto a concrete footing. We previously drilled the footing and epoxied a 5/8" stainless steel threaded rod into the footing.
Gather Your Measurements
Measurements are taken from column centers, our typical overhang is 24 inches
A freestanding pergola that measures 120" x 120" on center will have an overall size of 168" x 168"
An attached pergola that measures 120" x 120" on center will have an overall size of 144" deep x 168" wide
All dimensions, including overhangs and member spacing are completely customizable
Use our Pricing Tool
Our pricing tool let's you design your pergola in real time and get an actual price
You will see a plan view CAD drawing of your pergola
You can consider our electrical options, a shade system and/or our installation service
You will have the ability to save your project into our database then share the link with your team for group collaboration
Send Us Photos
Your photos help us serve you better in the design phase
Please send us pictures of your proposed site and the exterior of your home
Pictures can be sent via email to sales@baldwinpergolas.com
...or via text to (860) 500-1741. Our pricing tool also allows one to upload photos and various file types
Speak With Our Team
Once you have sent us your measurements and pictures we will reach out to you
Our project manager, Michael Hurlburt, will work out all of the important details
Once we have an understanding of your vision we will produce a set of drawings and a proposal
If you accept our proposal we require a 50% deposit to begin production
Consider the Options
We offer a wide variety of options for you to consider
Decorative Details: We offer an array of column styles and rafter contours
Finishes: Custom colors are available, including color matched finishes
Electrical: We can factory prewire your structure to accommodate lighting, fans, heaters, and more
Confirm The Details
Review and confirm your pergola or pavilion drawings
Review your electrical and shade system options
Sign and return the proposal
Once a signed proposal is returned and a deposit is received, we will begin production
